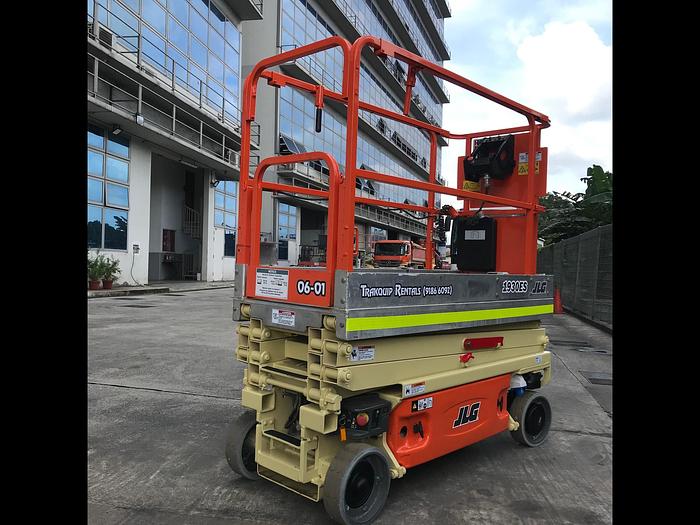

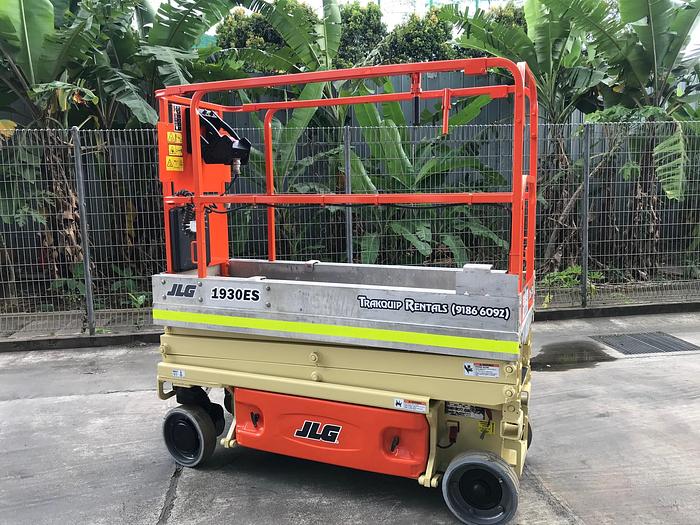

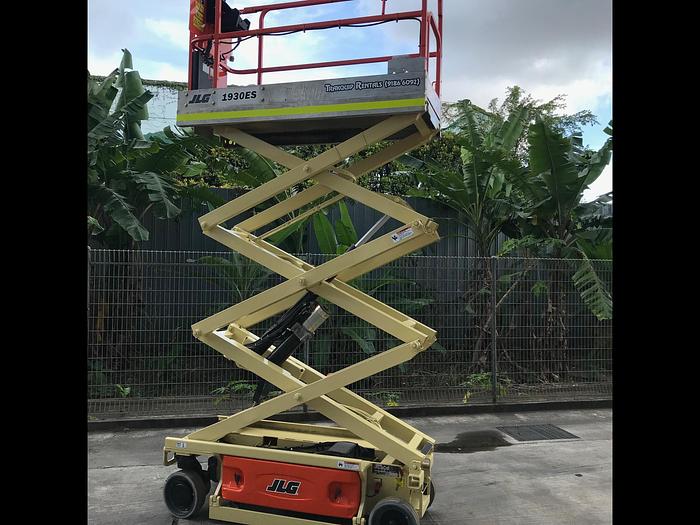

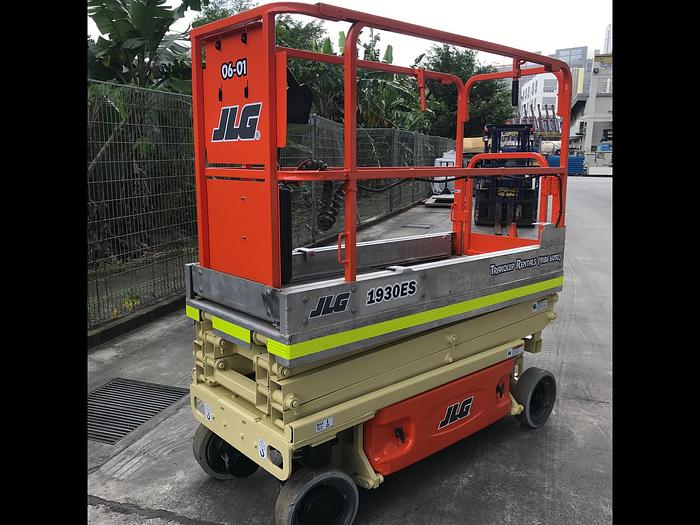

2011 JLG 1930ES

The JLG 1930ES is a 5.85 Mtr electric scissor lift designed for indoor and outdoor maintenance, featuring a 7Mtr working height and a (230 kg) capacity. Known for its narrow 76 Cm chassis and high efficiency, it is ideal for tight, congested indoor spaces.

The JLG 1930ES offers a balance of height and maneuverability suitable for sensitive indoor environments like hospitals, schools, and offices.

• Maximum Working Height: 7.72 m (approx. 25.3 ft).
• Platform Height (Elevated): 5.72 m (approx. 18.8 ft).
• Platform Capacity: 230 kg (507 lbs), rated for two persons indoors.
• Machine Width: 0.76 m (2.5 ft), allowing it to navigate narrow aisles and standard 30-inch doors.
• Platform Size: 0.76 m x 1.87 m with a 0.9 m (approx. 3 ft) roll-out deck extension for extra reach.
• Weight: Approximately 1250 kg .
• Power Source: 24V electric system powered by four 6V, 220 amp-hour deep-cycle batteries, Charging is by standard 110v / 240v auto charger

Core Features & Benefits

• Efficient Electric Drive: Provides near-silent operation and long duty cycles, delivering up to 200% more battery life than similar models according to manufacturer testing.
• Superior Maneuverability: Features a zero inside turning radius and 25% gradeability for navigating tight jobsites and ramps.
• Ease of Maintenance: Integrated components with fewer hydraulic hoses reduce potential leaks and downtime. Battery trays slide out for quick access.
• Indoor/Outdoor Versatility: Equipped with non-marking solid tires to protect sensitive flooring during indoor use.
• Safety & Controls: Includes proportional controls for smooth movement, an easy-to-read diagnostic display, and a manual descent pull cable for emergencies.
