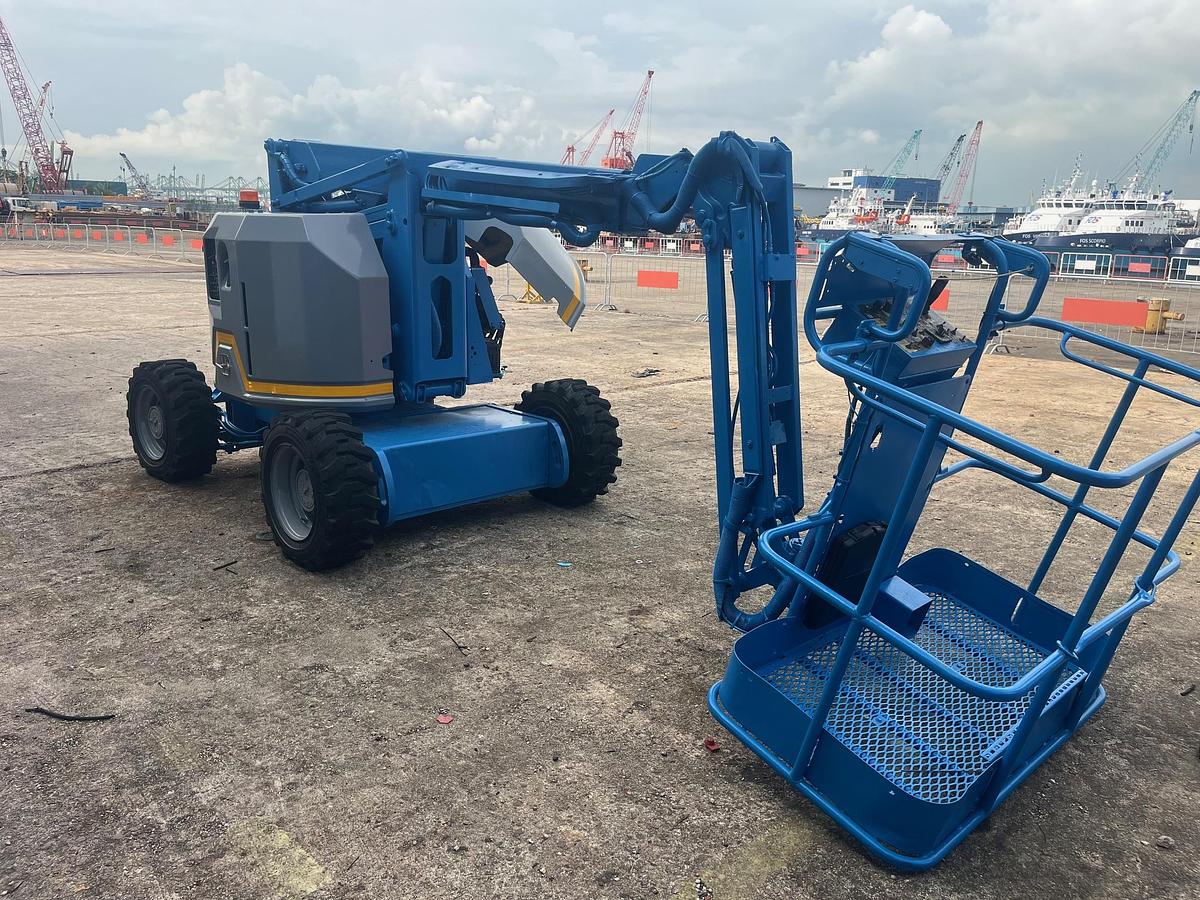

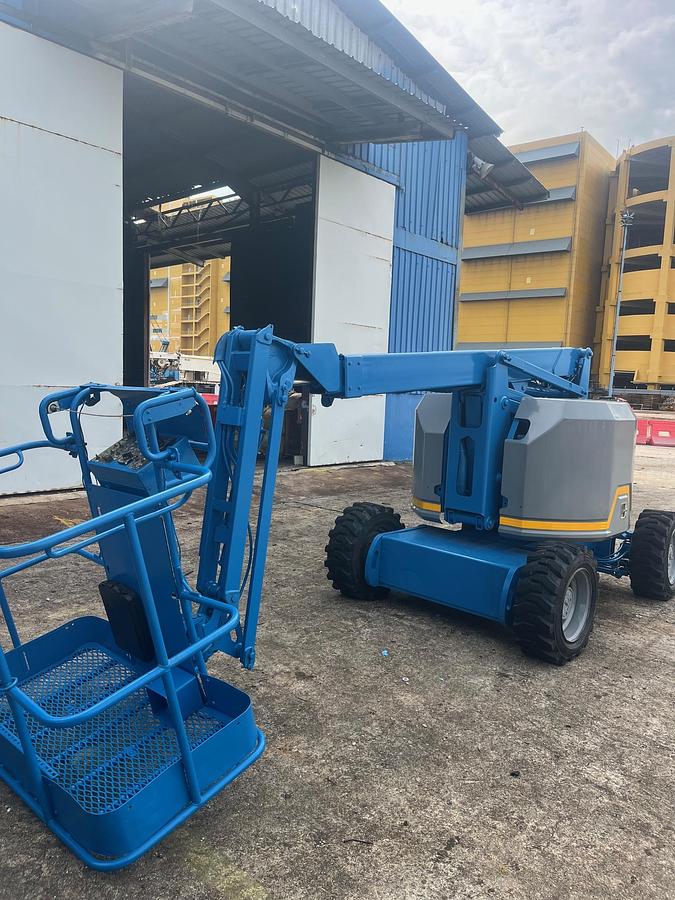

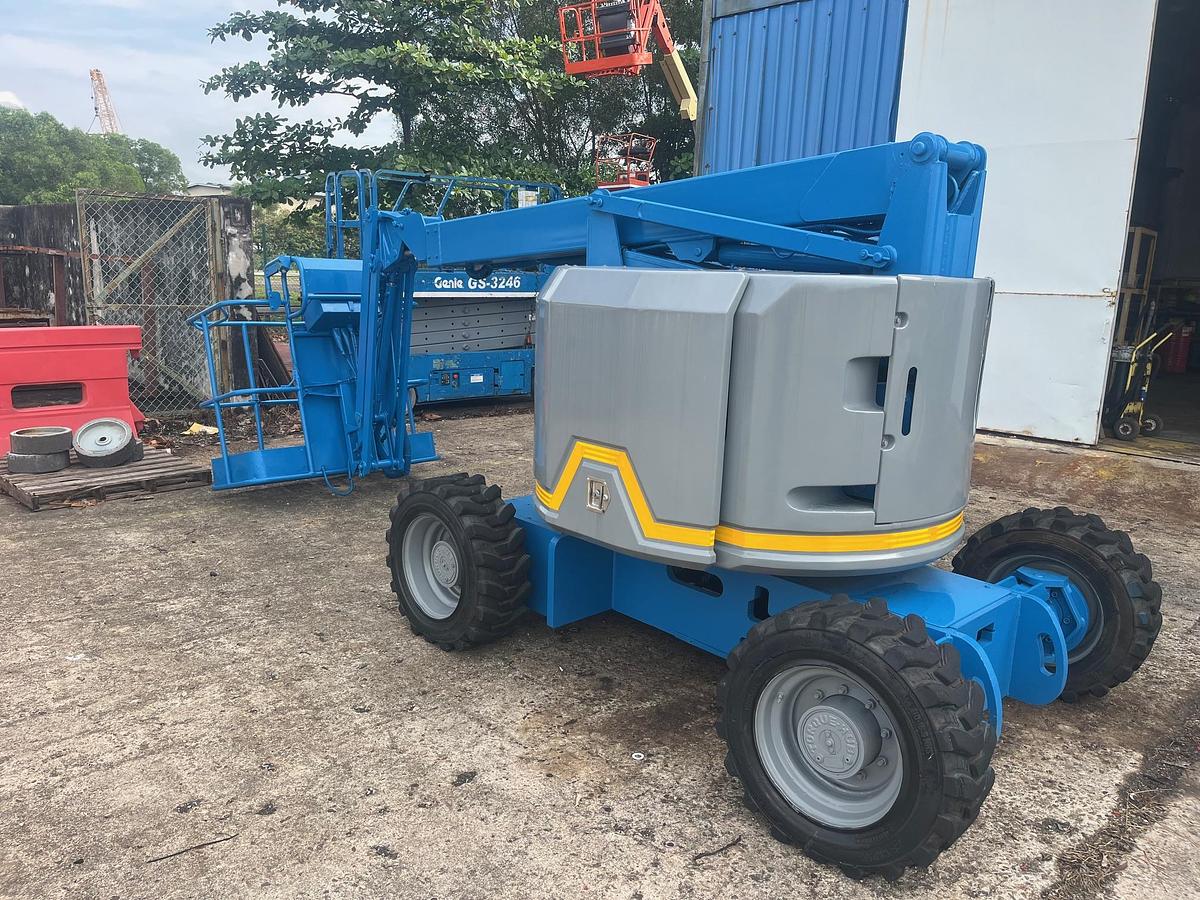

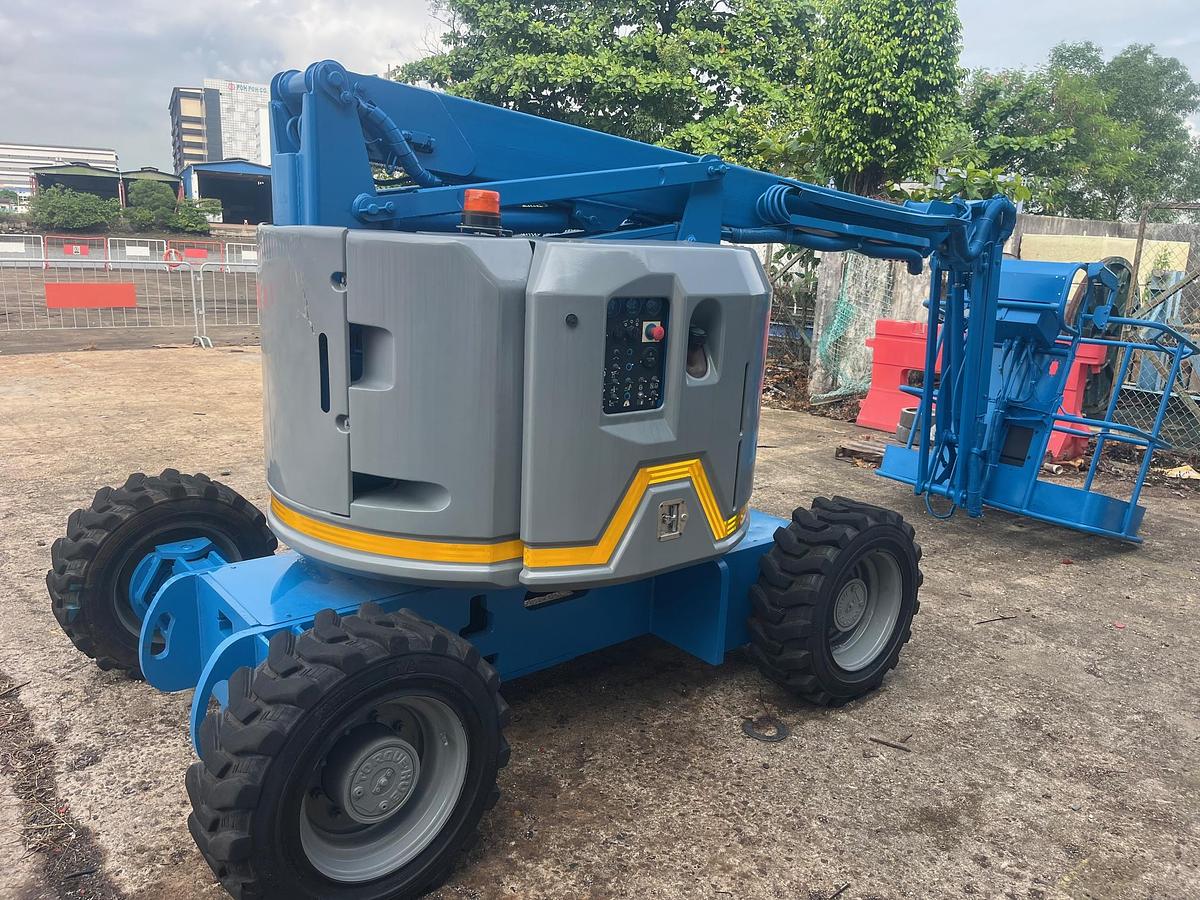

Z34/22 IC. Articulated Boom Lift

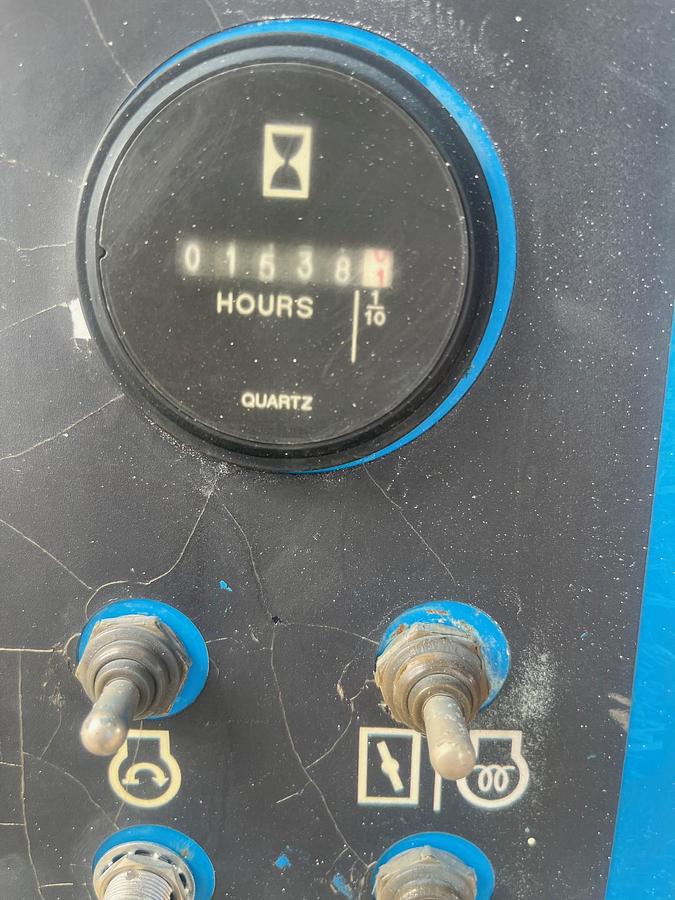

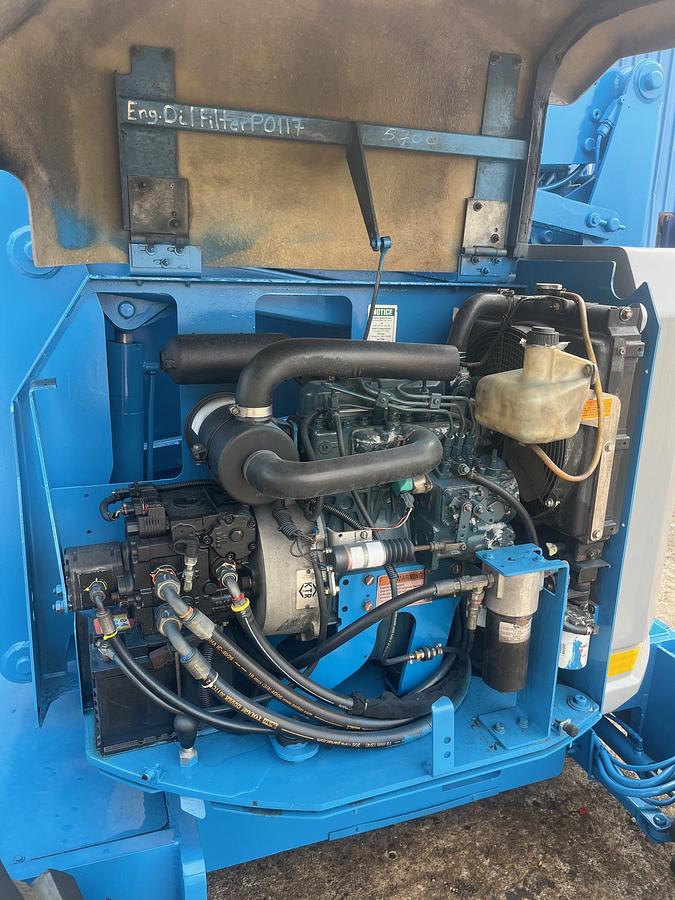

We have straight from our rental business this Genie Z34/22 IC 4WD, with 1538 Machine hours on the Kubota D905 Diesel Engine , New Foam filled wheels were fitted, repainted to factory colors.

Ideal for outdoor construction and industrial applications, the engine-powered Genie® Z®-34/22 IC articulating boom lift provides lifting versatility with a combination of up, out and over positioning capabilities and outreach that’s second to none.

Overview

• Zero tail swing and nose swing in all positions allow excellent manoeuvrability in confined areas
• Two speed hydraulic motors drive and efficient power transmission for optimum speed and torque on rough terrain
• 4WD and up to 45% gradeability for superior terrainability
• Dual parallelogram and fully proportional controls for precise boom positioning and smooth performance
• 4 ft (1.22 m) articulating jib with a 139° vertical rotation and 180° hydraulic platform rotation to accurately position workers

• Specifications

Max Working Height. 40 ft 7 in | 12.54 m

Max Horizontal Reach. 22 ft 3 in | 6.78 m

Max Up and Over Clearance. 15 ft 1 in | 4.60 m

Platform Capacity. 500 lb | 227 kg
